CoreStor 4724J / 4724JR JBOD

Clear selection
SKU: CS4724J Category:

Description

CoreStor JBOD series provides flexible and cost-effective external storage expansion for a wide variety of performance and capacity-oriented storage environments. The arrays combine 12Gb/s SAS-based host connectivity for more rapid access to data with the ability to scale capacity by daisy chaining multiple systems, making them configurable for a wide range of storage applications. CoreStor JBOD series incorporates LSI DataBolt bandwidth optimizer – a performance acceleration technology that allows users to take advantage of 12Gb/s speeds with existing 6Gb/s drive infrastructure, doubling their throughput. Featuring redundant hardware design optimized for high scalability and bandwidth, CoreStor JBODs offer the next-generation levels of performance and reliability to meet the most demanding storage requirements.

System Architecture

  • Supports single SAS expander module and optional 2nd SAS expander module for dual redundant mode.
  • Supports both 3.5″ and 2.5″ form factor hard drives and SSDs.
  • Supports expansion for up to a total of 256 drive bays.
  • Redundant and hot-swappable power supply and cooling fans.
  • O/S-Independent and host transparent.

Host Interface

  • High performance miniSAS HD connector (SFF-8644, 4x12Gb Links).

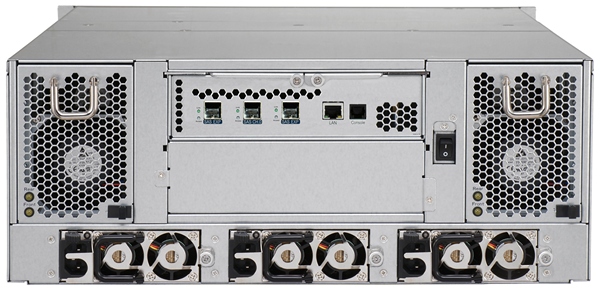

ModelsCoreStor 4724J - Single Expander

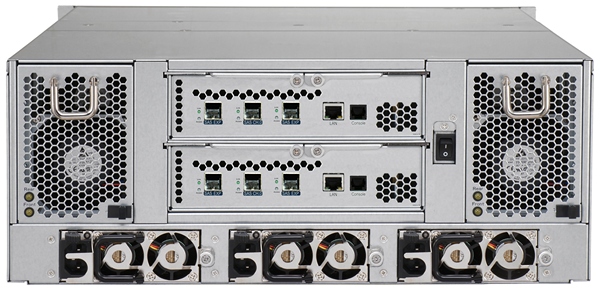

CoreStor 4724JR - Dual Expanders
Form Factor4U Rackmount
Disk Drives Capacity500GB, 1TB, 2TB, 3TB, 4TB, 6TB, and 8TB supported
HDD Trays128 Hot-Swappable 3.5" (2.5" form factor supported)
Maximum Capacity192TB (per chassis when using 8TB disk drives)
Host Interface & Transfer RateOne upstream miniSAS HD (SFF-
8644, 4x12Gb Links) connector per I/O expansion module
Expansion Ports2 x miniSAS HD( 4 x 6Gb Links, SFF-8644)
Drive Interface24 x 6Gb SAS/ SATA drives (Optional SAS-SATA Bridge supported)
Cooling Fan2 Hot-Swappable Modules & Blowers
Power Supply500W X 3 Redundant
Control InterfaceVia RAID Controller
Dimensions (in)19"W x 22"D x 7"H
Weight (lb)75 - Single Expander
80 - Dual Expander
Safety RegulationsCE, FCC, UL, RoHS
Limited Warranty3 Years
  • General File Server
  • Disk-to-Disk Backup
  • Digital Video Recording
  • Content Streaming
  • Archiving
  • Imaging
  • Media Servers
  • HPC

Download PDF DatasheetCoreStor JBOD Product Line Overview
